- Product Parameters:
- Material: Uses low-carbon steel wire, galvanized steel wire, or stainless steel wire (e.g., 304/316) as the base material; surface can be coated with PVC (enhancing corrosion resistance) or hot-dip galvanized (outdoor service life up to 15-20 years);
- Mesh size: Common rectangular or square mesh, specifications like 25×25mm, 50×50mm, 100×100mm, 150×150mm , adapted to different load needs;
- Wire diameter: Steel wire diameter is typically 1.0-6.0mm (e.g., 1.5mm for light-duty fencing, 4.0mm for concrete reinforcement, 6.0mm for heavy-duty industrial load-bearing);
- Size: Common width is 0.5-2.5 meters (customizable, e.g., 1.2m for shelves, 1.8m for fencing), length is mainly in rolls (10-50m/roll) or sheets (fixed sizes like 2×6m), expandable by splicing;
- Structural features: Welding points use resistance spot welding process (weld strength ≥80% of wire itself), edges have sheared neat borders, some products include reinforcing ribs;
- Performance indicators: Tensile strength ≥550MPa, weld point tensile force ≥200N/point, salt spray test ≥720 hours without rust.
- Product Advantages:
- Relying on CredenTex’s in-house automated welding production lines and precision weld pressure control equipment to ensure uniform and firm weld points (error ≤±1mm) and accurate mesh size, avoiding structural failure due to welding defects;
- Strictly implementing full-process quality control (raw material selection → wire straightening monitoring → weld strength testing → surface treatment thickness inspection → final corrosion resistance testing), complying with ISO 9001 certification standards. Some products can meet CE Mark;
- Providing customized solutions to adjust parameters according to scenario needs;
- Competitive pricing directly from the factory reduces costs compared to intermediary purchases;
- Reliable lead times (20-25 days for standard products, 30-35 days for customized orders) and efficient export logistics to adapt to urgent material needs of global engineering projects;
- As a basic structural supplement to the “one-stop construction mesh products and material solutions”, it improves CredenTex’s product range in the field of “engineering reinforcement” and helps engineering contractors and wholesalers expand welded mesh-related orders;
- Core value of the product: Balancing “structural strength” and “construction efficiency”—reducing on-site binding processes through prefabricated welded mesh to improve project progress; the metal material is recyclable, aligning with green building and circular economy trends.
Wire Mesh

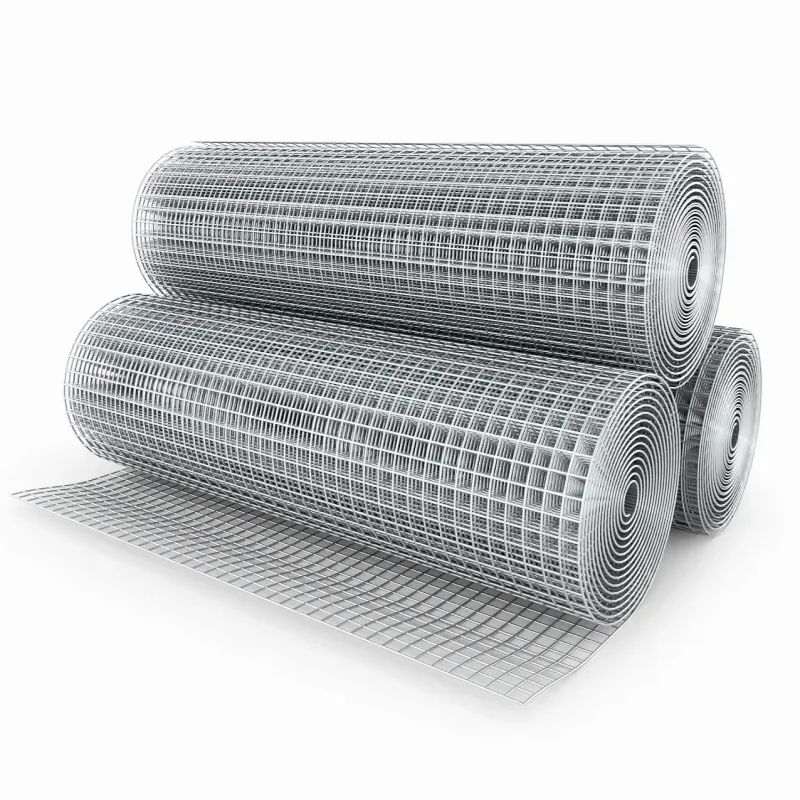

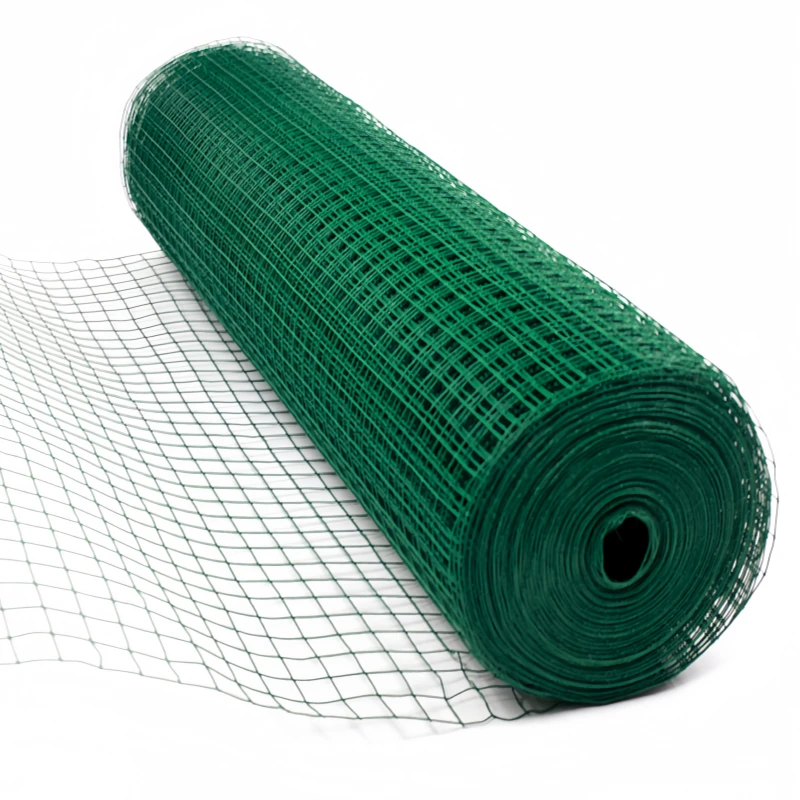

Welded Wire Mesh
Purpose: Welded Wire Mesh is a grid-like material formed by fixed cross-connections of longitudinal and transverse steel wires through resistance welding, with core functions of structural reinforcement, isolation protection, and load-bearing support, combining high strength, stability, and easy installation. It is suitable for construction (e.g., concrete slab/wall reinforcement to enhance tensile strength), industrial fencing (equipment area isolation, plant perimeter), agricultural breeding (livestock pens, poultry cages), warehouse shelves (load-bearing partitions), mine support (tunnel reinforcement), municipal engineering (drainage ditch cover base), etc., providing a “sturdy and easy-to-install” basic material solution for engineering contractors, building material wholesalers, and industrial project parties.
