- Product Parameters :
- Material: Uses E-glass fiberglass yarn (alkali content ≤0.8%, better electrical insulation and weather resistance) as the core raw material; some products use C-glass fiberglass yarn (lower cost). The yarn is woven into plain cloth without additional waterproof or reinforcement coatings.
- Specification Parameters:
- Mesh count: Common 10-40 mesh, adapted to different substrate strength needs;
- Yarn diameter: Single fiberglass yarn diameter 5-15 microns;
- Size: Width 1-3 meters (customizable to fit the width of large waterproof cloth production lines), length 50-200 meters/roll (roll form for continuous production);
- Weight: 50-300 grams/square meter.
- Performance Indicators: The data of Tensile Strength and Breaking Elongation will be provided after each sample is tested, temperature resistance range -50℃ to 200℃ (adapting to high-temperature environments for coating processing).
- Product Advantages:
- Relying on CredenTex’s in-house fiberglass yarn spinning and plain cloth weaving production lines to ensure yarn uniformity and consistent mesh count, avoiding uneven coating or delamination in subsequent waterproof cloth due to raw material deviations.
- Strictly implementing full-process quality control (fiberglass yarn raw material selection → spinning tension monitoring → plain cloth weaving density inspection → final tensile strength testing), complying with ISO 9001 certification standards.
- Providing customized solutions to adjust parameters according to waterproof cloth production needs (e.g., high-mesh cloth for fine waterproofing, high-weight cloth for heavy anti-corrosion), perfectly adapting to customers’ subsequent coating process requirements.
- Competitive pricing directly from the factory reduces raw material costs compared to intermediary purchases.
- Reliable lead times (20-25 days for standard products, 30-35 days for customized orders) and efficient export logistics to ensure continuous raw material supply for waterproof cloth manufacturers.
- As a upstream basic raw material in CredenTex’s “one-stop construction mesh products and material solutions“, it forms a “raw material-finished product” synergy system with its waterproof fiberglass cloth, fiberglass tape, and other products, helping waterproof cloth manufacturers and composite material manufacturers achieve one-stop procurement of “substrates + finished products”.
- Core value of the product: Balancing “substrate stability” and “processing compatibility“—through the pure fiberglass yarn plain cloth structure, it ensures good adhesion with various waterproof coatings (polyurethane, PVC, asphalt), laying the foundation for the high performance of subsequent synthetic waterproof fiberglass cloth.
Fiberglass Mesh
Waterproof Fiberglass Cloth

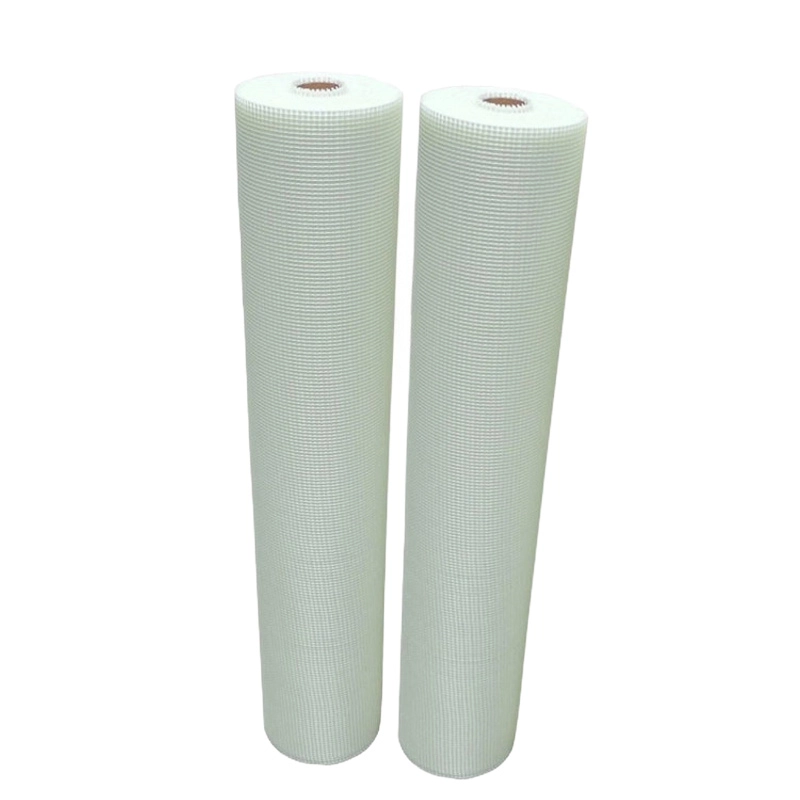

Purpose: Waterproof Fiberglass Plain Cloth (or Fiberglass Base Cloth) is an uncoated basic mesh fabric woven from fiberglass yarn. Its core purpose is to serve as the core substrate for synthetic waterproof fiberglass cloth—through its uniform grid structure and high-strength fiberglass yarn, it provides a stable support carrier for subsequent waterproof coatings (e.g., polyurethane, PVC), ensuring the water resistance and structural reinforcement of the waterproof cloth. In addition, it can also be used as a basic substrate for other fiberglass products, suitable for upstream raw material links in scenarios such as building waterproofing, industrial anti-corrosion, and composite material processing, providing a “basic yet critical” raw material solution for waterproof cloth manufacturers and composite material manufacturers.
