Fiberglass Screen Mesh
Fiberglass Screen Mesh - 图片 2
Fiberglass Screen Mesh - 图片 3
Fiberglass Screen Mesh - 图片 4

Fiberglass Screen Mesh

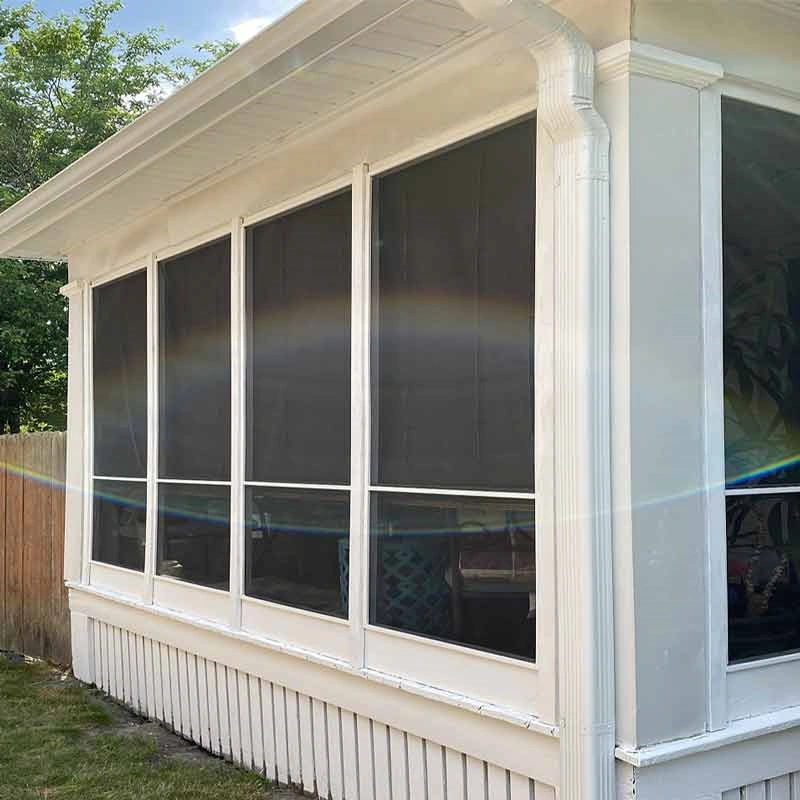

Purpose: Fiberglass Insect Screen Mesh, as the flagship product of CredenTex’s Screen Mesh​ series, is a composite anti-insect and ventilation material made of PVC-coated fiberglass yarn, woven in a plain weave and heat-set at high temperatures. Its core purpose is to provide high-strength, corrosion-resistant, and long-lasting physical insect protection​ for residential homes, commercial storefronts, patios, and balconies. It effectively blocks mosquitoes, flies, and even tiny biting midges while allowing fresh air circulation and excellent daylight transmission. Replacing traditional metal screens, it is the top choice for pet-friendly homes and various architectural applications due to its outstanding weather resistance, flame retardancy, and shape retention.

分类： 标签：
  • Product Parameters​ (Based on industry standards and CredenTex’s manufacturing capabilities):
    • Material Composition: High-quality fiberglass yarn coated with eco-friendly PVC resin​ (approx. 35% glass fiber, 65% PVC). This combination ensures dimensional stability and superior resistance to UV rays and chemical corrosion.
    • Wire Diameter & Mesh Count: Standard wire diameter is 0.28mm (0.011 inches). Multiple mesh counts are available to suit different needs:
      • 18×16 Mesh​ (Industry standard, balances ventilation and insect proofing, ~69% light transmittance);
      • 18×14 / 16×16 Mesh​ (Heavier duty for porches, pool enclosures, or areas requiring higher wind resistance);
      • 20×20 Mesh & above​ (Micro-mesh for tiny insects like gnats/no-see-ums).

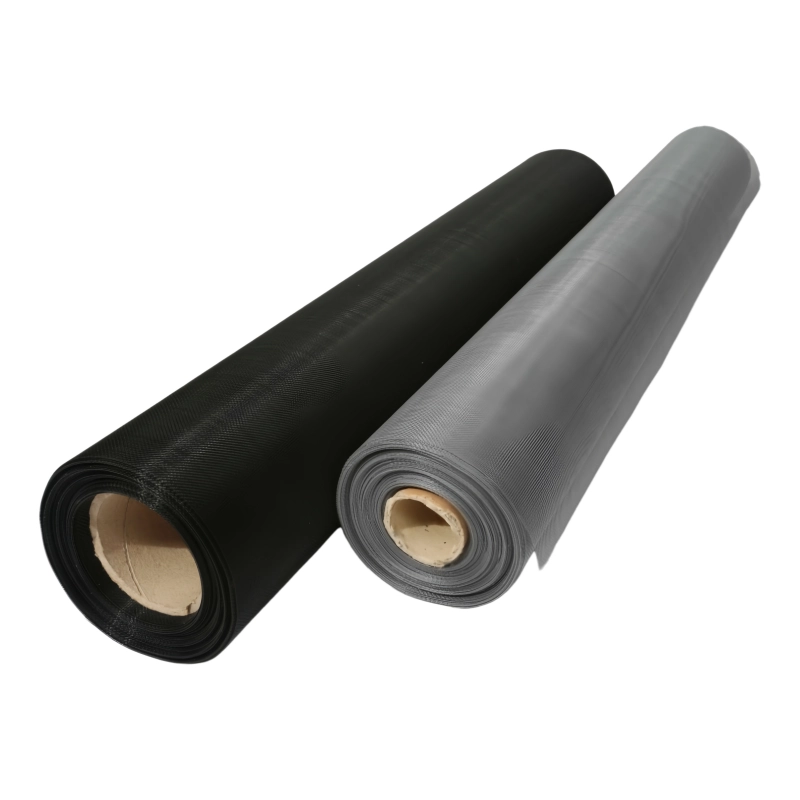

    • Dimensions: Standard roll widths range from 0.6m to 3.0m​, with special widths available upon request. Standard roll lengths are 30m​ (max 300m). Custom pre-cut sizes are also supported.
    • Mechanical Strength: High tensile strength, typically ≥180N (warp) / 160N (weft)​ per 25mm width, resisting tears from daily use, pets, and severe weather.
    • Color Options: Available in Black, Gray, White, Green, and Brown. (Note: Black and Charcoal Gray are the most popular choices globally as they offer the best outward visibility).
  • Product Advantages​ :
    • Eco-Friendly & Non-Toxic: CredenTex strictly controls its formulas to ensure zero harmful CFCs (Chlorofluorocarbons). The screens are completely odorless, ensuring a healthy indoor environment.
    • Exceptional Weather Resistance & Longevity: The synergistic protection of the fiberglass core and PVC coating provides unmatched resistance to aging, extreme temperatures, and moisture. Expect a prolonged service life of 8-10 years​ outdoors, significantly reducing replacement frequency.
    • Inherent Flame Retardancy & Anti-Static Properties: Utilizing natural A-grade non-combustible glass fibers, the mesh is inherently flame retardant. Its anti-static surface actively repels dust and dirt, keeping the screen clean and clear with minimal maintenance.
    • Superior Shape Retention: Advanced heat-setting technology ensures the mesh remains perfectly flat and taut after installation. It will never unravel, sag, or deform, making it incredibly DIY-friendly and easy for professional installers to achieve a flawless, wrinkle-free finish.
    • Guaranteed Quality & International Compliance: Powered by CredenTex’s automated production lines and stringent ISO 9001 quality control protocols, every roll meets exacting standards for mesh uniformity and tensile strength. Our screens comply with REACH regulations, fully meeting European and North American quality requirements.
    • Flexible OEM/ODM Customization: Whether you require specific mesh counts (e.g., 18×14, 20×20),  CredenTex delivers. We tailor solutions to your exact specifications, empowering your business model.
    • Direct-from-Factory Value & Logistics: By eliminating middlemen, we offer highly competitive direct factory pricing. Benefit from reliable lead times (15-25 days​ for standard items, 30-35 days​ for customized orders) and seamless global logistics coordination, including comprehensive customs documentation and real-time tracking .
    • The Core of Our One-Stop Solution: As the cornerstone of CredenTex’s insect screening range, Fiberglass Insect Screen perfectly complements our Polyester (wrinkle-resistant) and Plastic (lightweight/economical) variants. This allows you to offer a comprehensive, one-stop building mesh solution to your clients. It truly embodies our core value: “stable-quality mesh produced through the synergy of people, equipment, and raw materials becomes the core value of our ecosystem.”
